Mass Airflow Sensor (MAF)

Failure Symptoms

How a Mass Airflow Sensor Works
the mass airflow (MAF) sensor measures the volume of air entering the engine so the Engine Control Unit (ECU) can calculate how much gasoline the fuel injectors should deliver to each cylinder in order to create the proper fuel-air ratio. Sometimes, however, a malfunction in this little instrument can lead to big problems, usually resulting in very poor engine performance.
What Are the Symptoms of a Faulty Mass Air Flow Sensor?

Signs of a bad MAF sensor may mimic problems such as low vacuum, low compression, or low fuel pressure due to a bad fuel pump. The most common symptoms of a malfunctioning MAS sensor include:
• The engine is hard to start or has trouble turning over.
• The engine stalls soon after starting.
• The engine drags or hesitates when idle or under load.
• The engine hesitates and jerks during acceleration.
• The engine hiccups.
• The engine displays unusually lean or rich idling.

If you suspect that your MAF sensor is problematic, run a complete computer diagnostic. A bad MAF sensor will generate a particular code, so it’s easy to tell whether this is the source of your car troubles.

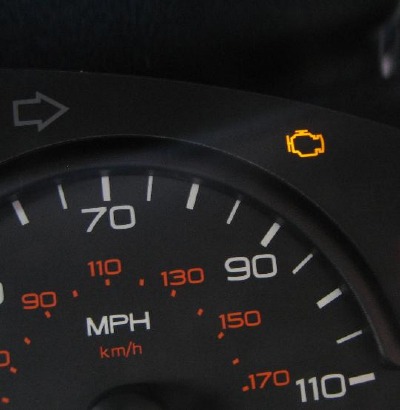

Check Engine Light
The most reliable early symptom of a failing or failed MAF is the illumination of the check engine light on the instrument panel. Many types of problems may cause this light to come on, so you must have your car’s computer analyzed to see if the light is related to the mass airflow sensor.
Computer Analysis
An auto mechanic can analyze a car’s computer for a fee, or you can do it yourself using a digital auto diagnostics scanner. These scanners are available at most auto parts stores, and though they all work a little differently, they’re generally designed to be plugged into the car’s OBD-II diagnostic port so that they can read the computer data. After the scan, the scanner will display one or more alphanumeric codes, which may be looked up in a reference book that accompanies the scanner if the scanner is one that does not display the summary of the code on its screen. If you do this and the scanner codes refer to a malfunctioning MAF, you will need to have the MAF inspected and likely replaced. Mass air flow sensors are rarely repaired, as it is usually more cost-effective to replace them.


Flowmeter problem ?


Don't forget to clean your engine every years or 10000 miles.

Preventive engine cleaning enables you to restore engine parts rather than replacing them, thereby saving vehicle owners on costly parts, such as a new turbocharger (1.350€- 3.100€), catalytic converter (600e - 2.000€), DPF (600€ - 2.000€) or EGR valve (370€ - 500€).

These problems result mainly from poor combustion, which stifles the engine.

So before replacing your engine parts, try Carbon Cleaning. A dirty engine as the result of carbon deposits is the new threat to vehicle performance.

Make your online diagnosis
Because the MAF is instrumental in maintaining proper balance of air and fuel inside the engine, MAF failure can cause a range of engine performance problems. These may include low gas mileage, shuddering, stalling, knocking or pinging. Other common automobile problems can also cause these symptoms, so they don’t specifically indicate MAF failure. These symptoms can appear, however, before the MAF fails to the extent that it will register the check-engine-soon light.
Particle Buildup
Sometimes the MAF will begin malfunctioning because it is dirty. Although the air that passes through the MAF is filtered, microscopic particles will still get through and accumulate on the sensor. Most of the time, this buildup won’t be significant enough to affect the MAF, but severe buildup can cause interference. In these cases, you may be able to restore it to full functionality by removing and cleaning it.

The MAF is mounted to the vehicle’s air cleaner box and connected to the computer with a wiring harness. If you remove the mounting bolts and wiring harness, you can remove the entire mass airflow sensor unit and open it to expose the sensor. The sensor is a small unit with two exposed wires; the wires heat up when the car is running, and the MAF measures the airflow by detecting how quickly the flow of air cools the temperature of the wires. Spraying these wires clean with MAF cleaner or electrical contact cleaner and leaving the MAF to air dry is the best approach to cleaning this sensitive instrument. Once it is dry, it can be reinstalled and the car can be started again. If engine performance is restored or the check-engine-soon light goes off, it is likely that the MAF was dirty and not broken.
