What the numbers and letters mean
Engine oil used to be a lot simpler. The local auto parts store typically carried a few varieties of a few major brands, and that was about it. As engines have become more complex, engine oil has diversified to keep up with changing needs — as evidenced from all the specs printed on bottles of engine oil. Fortunately, there are industry standards that explain it all.
The numbers

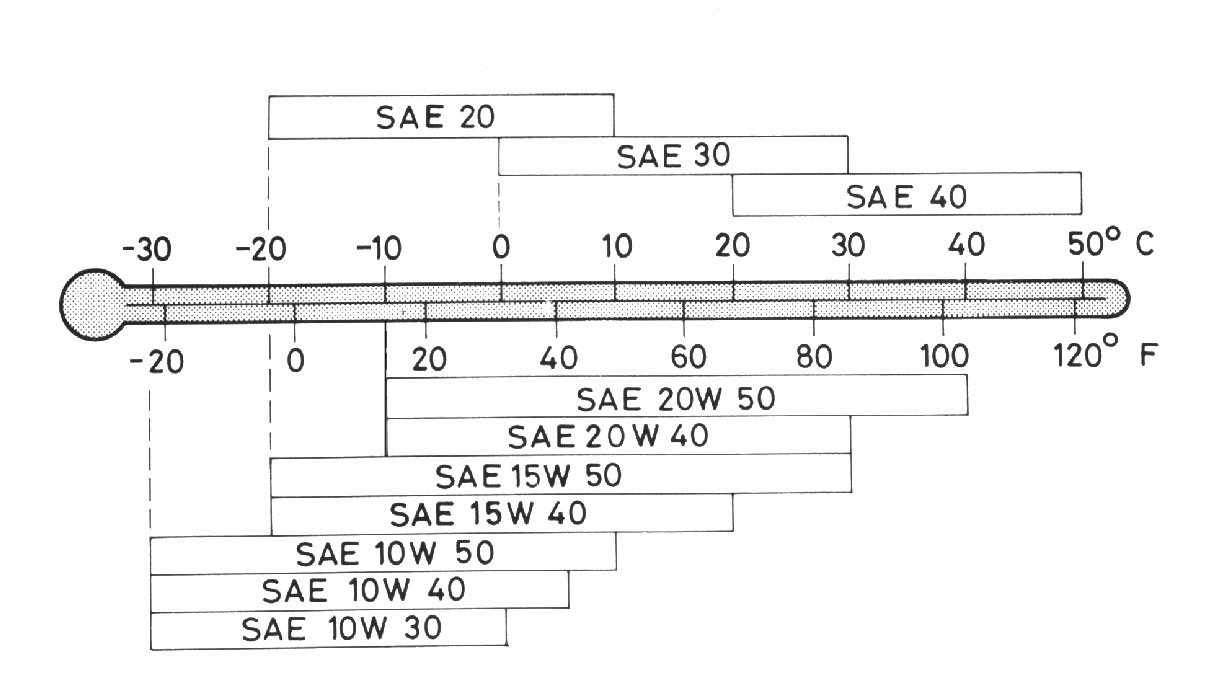

On the front of a typical engine oil container, you’ll see the oil’s specified viscosity rating. For our basic introduction to engine oil, just think of viscosity unscientifically as “thickness.” A few common viscosities include 0W-20, 5W-30, 10W-40, and 20W-50, though there are many more. These are multigrade oils, containing additives to tailor their viscosities to various engines’ requirements and ambient operating temperatures (although, on the latter point, the numbers themselves do not translate directly to thermometer readings).
Example : 5W-30 oil. The first number, 5, indicates the lowest operational cold temperature range, while the second, 30, signifies the highest operational temperature range. You may see single-grade oils with simpler viscosity numbers, like 20W, for instance. These have a limited operating range and only perform well for specific applications and conditions. Most modern vehicles are happiest with multigrade oils.
The letters
Whatever the engine oil’s viscosity, the numbers are usually preceded by “SAE,” which stands for the Society of Automotive Engineers, the organization whose viscosity standards determine the numbers. Incidentally, the prominent “W” is somewhat redundant in that it stands for “winter,” reconfirming the first number’s representation as the coldest operating range.
